spmd

Overview

Teaching: 40 min
Exercises: 50 min

Questions

• What is the spmd construct in MATLAB PCT?

• What are distributed and composite arrays?

• How to distribute data among workers?

Objectives

• To learn to use the spmd construct in MATLAB.

• To learn to create distributed arrays.

• To learn to work in pmode.

spmd

• spmd stands for single program multiple data. SPMD, in the parallel computing paradigm, usually refers to a parallel program written for distributed-memory architectures using the Message-Passing Inteface (MPI).
• single program refers to the fact that the statements inside the block execute on all the workers in the active parallel loop.
• multiple data aspect refers to the ability of the workers (labs) to work on a different data set while executing the same code.

The basic syntax for smpd programs in MATLAB is:

% execution on master/client
spmd (n)
    % execution on workers
    statements
end
% execution on master/client

In the above code, (n) is optional. If this is not specified, then the spmd uses all the workers in the pool, by default. We can change this behaviour by explicitly specifying the number of workers, if necessary.

When to use spmd?

spmd is the most flexible parallel programming construct in MATLAB PCT, and is very useful for:

• programs that take a long time to execute on local computers, and,
• programs that operate on large data sets which do not fit on local computers.

Where is the data?

• If a variable created before the spmd block is used inside the block, then that variable will be copied to all the workers participating in the parallel pool corresponding to that spmd block.
• A variable created inside the spmd block is unique to each worker.

Understanding spmd

To understand how spmd in MATLAB works, let’s create a MATLAB script with the following code and run it:

A = eye(5,5);

spmd
    Adist = codistributed(A);
    getLocalPart(Adist)

    if(labindex == 1)
      B = magic(3);
    else
      B = magic(5);
    end
end

B

B{1}

B{2}

When the program is run successfully (with a parallel pool with 2 workers), we get the following output:

Lab 1:

  ans =
    1    0    0
    0    1    0
    0    0    1
    0    0    0
    0    0    0

Lab 2:

  ans =
    0    0
    0    0
    0    0
    1    0
    0    1

B =
    Lab 1: class = double, size = [3 3]
    Lab 2: class = double, size = [5 5]

  ans =
    8    1    6
    3    5    7
    4    9    2

  ans =
    17    24    1    8    15
    23     5    7   14    16
     4     6   13   20    22
    10    12   19   21     3
    11    18   25    2     9

The above program:

• creates matrix A as a 5x5 identity matrix on the client/master.
• then opens an spmd block.
• creates a distributed array Adist by copying the contents of A.
• gets the local part of Adist and prints it to the screen.
• creates a local variable B.
• ends the spmd block.
• prints the contents of B.
• prints the contents of B{1}.
• prints the contents of B{2}.

In the above program:

• A is an array variable that is local to the client/master.
• Adist is the distributed array, meaning that the contents of Adist are stored among the workers. Each worker stores only a portion of Adist.
• array variable B is local to each worker in the parallel pool. In the strict sense of parallel programming, accessing of B using B{1} and B{2} is illegal because it is created inside the spmd block. But, MATLAB allows this. In MATLAB B is called as a composite variable.
• labindex is the rank of the worker.

Variable persistence in sequences of spmd constructs

% first spmd block
spmd
    if(labindex == 1)
      B = magic(3);
    else
      B = magic(5);
    end
end

B

B{1}

B{2}

% delete(gcp)

% second spmd block
spmd
    B = B + 2*labindex;
end

B

B{1}

B{2}

When the program is run successfully (with a parallel pool with 2 workers), we get the following output:

B =
    Lab 1: class = double, size = [3 3]
    Lab 2: class = double, size = [5 5]

ans =
    8    1    6
    3    5    7
    4    9    2

ans =
    17    24    1    8    15
    23     5    7   14    16
     4     6   13   20    22
    10    12   19   21     3
    11    18   25    2     9
B =
    Lab 1: class = double, size = [3 3]
    Lab 2: class = double, size = [5 5]

ans =
   10    3    8
    6    7    9
    8   11    4

ans =
    21    28    5   12    19
    27     9   11   18    20
     8    10   17   24    26
    14    16   23   25     7
    15    22   29    6    13

Multiple spmd constructs

Uncomment the delete(gcp) line in the above code and observe the output behaviour.

Solution

MATLAB throws an error when it reaches the second spmd block. This is because all the variables on the workers (labs) will be deleted from memory once the parallel pool is deleted.

Explicit data transfer

In a parallel program, we are often required to transfer data between the workers. Here are some examples of this:

• To get the interface fluxes from the neighbouring element in finite element analysis;
• In evaluating stencils/operators in finite difference schemes;
• For some averaging operations for pixels in image processing;
• Et cetera.

The spmd construct offers a flexible environment for explicit data transfer between the workers. MATLAB PCT provides its own functions that are equivalent to MPI_Send, MPI_Receive, MPI_SendReceive, MPI_Barrier, MPI_Broadcast, and others in the MPI paradigm. The MATLAB equivalent of these functions are labSend, labReceive, labSendReceive, labBarrier and labBroadcast.

Syntax and usage for labSend

% labSend(data, rcvLabIdx, tag)  --- `tag` is optional

% consider that this code is executed on lab 1

a = [1 2 3 5 7 11];

labSend(a, 5)           % sends array `a` to the worker 5

labSend(a, [2 4 8 10])  % sends array `a` to the workers 2, 4, 8 and 10.

labSend(a, 3, 1234)     % sends array `a` and a tag value 1234 to the worker 3.

labSend

• data can be any supported MATLAB data type.
• rcvLabIdx must be a positive integer, or vector integers between 1 and numlabs.
• tag must be a nonnegative integer from 0 to 32767. Default value is 0.

Syntax and usage for labReceive

%data = labReceive                 % receives data from any worker with any tag.
%data = labReceive(srcWkrIdx)      % receives data from the specified worker with any tag
%data = labReceive('any',tag)      % receives data from any worker with the specified tag.
%data = labReceive(srcWkrIdx,tag)  % receives data from only the specified worker with the specified tag.
%[data,srcWkrIdx,tag] = labReceive % returns the source worker labindex and tag with the data.

a = labReceive(1, 1234)            % receives the data from lab 1 that matches the tag 1234.

Blocking communication

The labSend function can block the execution until the corresponding labReceive function is executed in the receiving lab. This can lead to communication blockage between the workers, which makes this program hang forever.

Exercise on communication

Create a new parallel pool with 4 workers.

Create a 1D array of size 10 on lab 1.

Send it to all labs in the pool using tag 9876.

From all the labs except lab 1:

*) Print a message along with the lab number

*) Print the contents of array

*) Add labindex to the array

*) Print the contents of array again

Solution

clc;
delete(gcp('nocreate'));
parpool(4);
spmd
    if(labindex == 1)
        a = 1:10;
        labSend(a, 2:numlabs, 9876);
    else
        a = labReceive;
        fprintf("Hello from worker %d \n", labindex);
        disp(a);
        a = a + labindex;
        disp(a);
    end
end

pmode and Parallel Command Window

In the previous examples, we have observed that the output from all the workers is displayed in the default MATLAB Command Window. This is because the workers in the default MATLAB session are without their individual displays. While this might not be such a big issue for problems with small data sets, it can be a daunting task to navigate our way through the entire output from all the workers. MATLAB PCT offers a very useful functionality in the form of MATLAB’s Parallel Command Window that helps to overcome this difficulty.

The MATLAB’s Parallel Command Window is similar to the standard Command Window of MATLAB where we type the commands. However, unlike the standard Command Window, the Parallel Command Window runs on all the workers in the parallel pool. The following figure shows MATLAB’s Parallel Command Window with eight workers (labs):

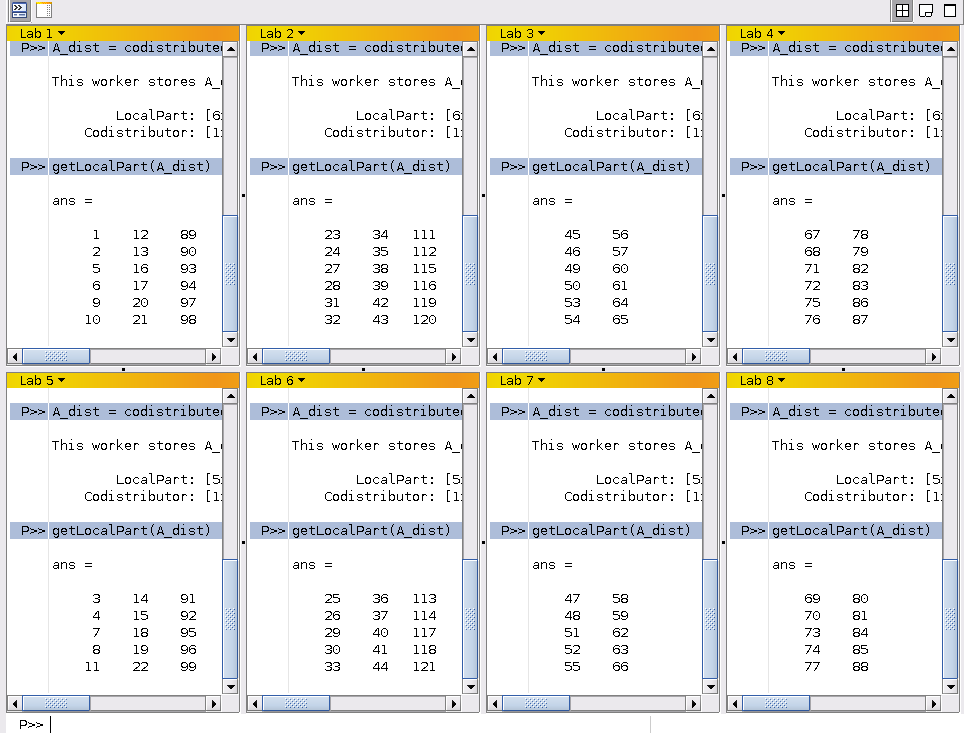

pmode and MATLAB’s Parallel Command Window

pmode is the MATLAB command for launching the MATLAB Command Window in parallel mode. pmode is interactive. pmode lets us work interactively with a job running simultaneously on several workers in the parallel pool. The commands we type at the pmode command prompt are executed on all the workers. Commands to start and exit the pmode are:

>> pmode start                         % start pmode with the default options
>> pmode start <numworkers>            % start pmode with the specified number of workers
>> pmode start <profile> <numworkers>  % start pmode with the specified profile and number of workers
>> pmode quit                          % stop the pmode job (deletes the job and closes Parallel Command Window)
>> pmode exit                          % stop the pmode job (deletes the job and closes Parallel Command Window)

pmode command prompt

• The command prompt in the standard mode is: >>
• The command prompt in pmode is: P>>

Exercise on Parallel Command Window

Semicolons are not included in the code so that we can see the information on the different variables we create.

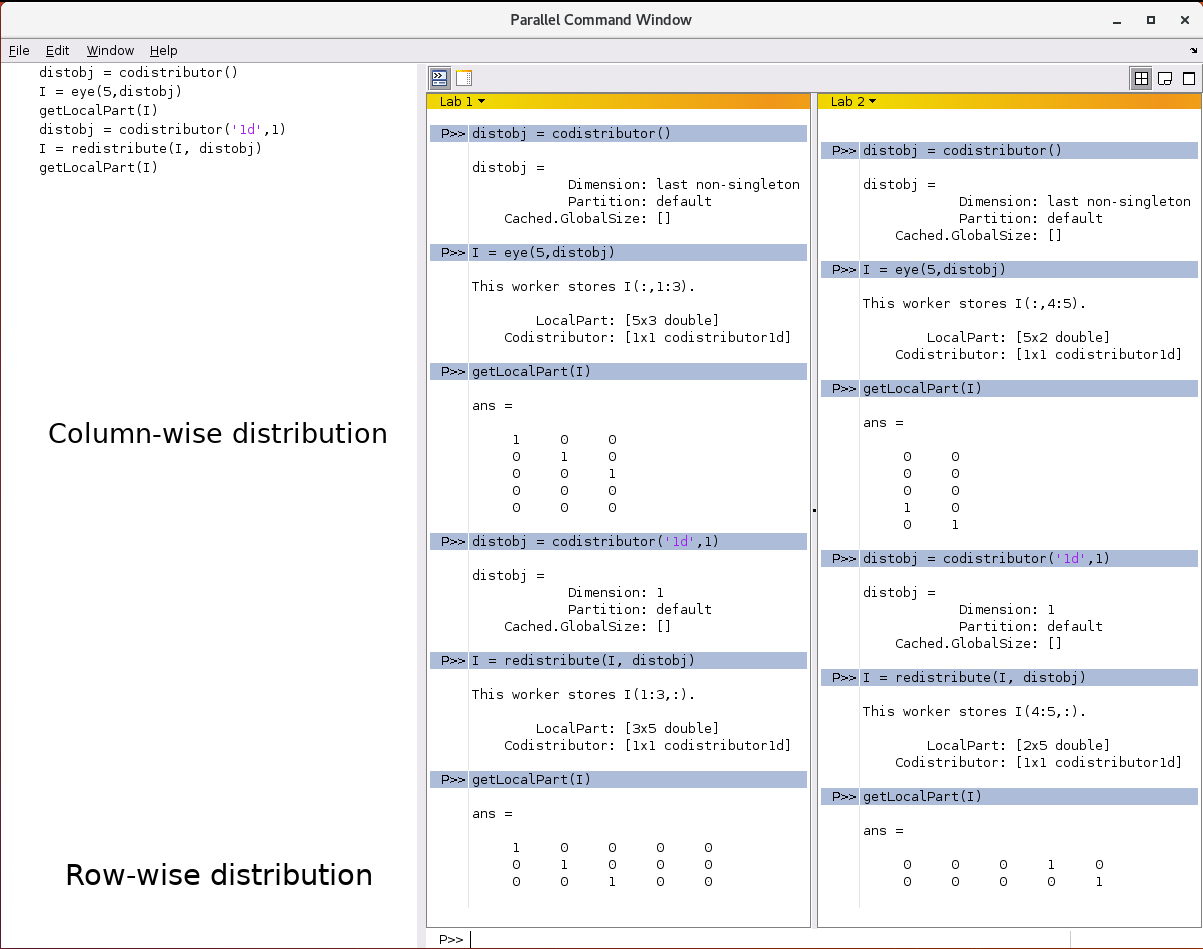

• Open the Parallel Command Window with two workers:

    >> pmode start local 2


• Create a distributed identity matrix of rank 5:

    P>> distobj = codistributor()
    P>> I = eye(5, distobj)
    P>> getLocalPart(I)


  You should see the first three columns displayed in the output window of Lab 1 and the next two colulmns in Lab 2.

• Rearrange the distribution based on rows:

    P>> distobj = codistributor('1d',1)
    P>> I = redistribute(I, distobj)


  Now, you should see the first three rows displayed in the output window of Lab 1 and the next two rows in Lab 2:

Distributed data

One of the fundamental ideas of parallel computing is to distribute the data among the computing units so that we can store and process significantly large amount of data, (and in short time too). The skill in developing programs for parallel computing is in understanding how the data is stored, and in managing the data efficiently. In MATLAB, distributed arrays can be created using several options.

A distributed array can be created from the existing array on the client/master. For example:

A = eye(5,5);  % array on the client/master
spmd
    Adist = codistributed(A);  % array distributed among the workers
end

A distributed array can also be created by using array constructors, as seen in the previous example. To create a distributed array of size $5\times5$ and initialise to zero:

spmd
    Adist = zeros(5, 5, 'codistributed');  % array distributed among the workers
end

As seen in the previous examples, the default distribution strategy is the distribution by columns. This behaviour can be changed by passing a distributor object with appropriate options to the codistributed function, or using the redistribution function:

A = eye(5,5);  % array on the client/master
spmd
    % codistribution object with the options to distribute
    % the array using 1d (one-dimensional) distribution
    % in dimension 1 (rows)
    distobj = codistributor('1d', 1);

    Adist = codistributed(A, distobj);  % array distributed among the workers
end

A = eye(5,5);  % array on the client/master
spmd
    % default distribution using column-wise distribution
    Adist = codistributed(A);  % array distributed among the workers

    % codistribution object with the options to distribute
    % the array using 1d (one-dimensional) distribution
    % in dimension 1 (rows)
    distobj = codistributor('1d', 1);

    % redistributed array using row-wise distribution
    Adist = redistribute(Adist, distobj);
end

distributed vs codistributed arrays

So far we have seen the use of the codistributed function for creating distributed arrays in MATLAB PCT. MATLAB offers another function distributed which works in a similar fashion but with a slight difference.

distributed and codistributed are the data type of the arrays distributed in the parallel pool - the data type is distributed on the client and codistributed on the workers.

The main difference between distributed and codistributed functions is in the amount of flexibility in controlling the distribution pattern.

• distributed:
  • Should be used outside the spmd block.
  • Is called from the client/master, and it creates an array that is distributed among all the workers in the parallel pool.
  • We cannot control the distribution details when using this function.
  • Use distributed to create a distributed array by copying the data on the client workspace or a datastore, using the default distribution pattern.
• codistributed
  • When used in an spmd block or in pmode, codistributed creates an array that is distributed among the workers in the parallel pool. But when used outside an spmd block, the entire content of the array is stored on the client.
  • Is called by all the workers in the pool, and it creates an array that is distributed among all the workers in the parallel pool.
  • We CAN control the distribution details when using this function, for example, row-wise distribution or block distribution instead of the default column-wise distribution.
  • Use codistributed to create a distributed array by copying the data on the client workspace or a datastore, using either the default distribution pattern or a distribution pattern of our liking.

distributed inside spmd or pmode

distributed inside spmd block creates a variable of class spmdlang.InvalidRemote. Never use distributed inside the spmd block or in pmode.

Exercise on distributed arrays

Run the following code from a script (not in pmode), and observe the output:

A = eye(5,5);  % array on the client/master

Adist1 = distributed(A)  % distributed array
Adist3 = codistributed(A)  % distributed array
spmd
    Adist2 = codistributed(A);  % distributed array
end

disp("Adist1 - Adist2")
Adist1 - Adist2
disp("Adist1 - Adist3")
Adist1 - Adist3

Solution

Adist1 and Adist2 are distributed arrays distributed among the workers. Adist3 is created as a distributed array but all of its contents are stored only on the client. Operation Adist1 - Adist2 works fine. But MATLAB throws an error "It is illegal to mix distributed and codistributed arrays in an opeeration." when it tries to executre Adist1 - Adist3.

Exercise - Parallel direct solver

In this exercise, we use the parallel direct solver, the \ operator, in MATLAB PCT to solve a matrix system.

clc;

n = 1000;
A = randi(100,n,n);
ADist = distributed(A);

b = sum(A,2);
bDist = sum(ADist,2);

xEx = ones(n,1);
xDistEx = ones(n,1,'distributed');

tic
x = A\b;
err = norm(xEx-x)
toc

tic
xDist = ADist\bDist;
errDist = norm(xDistEx-xDist)
toc

Gathering data

Until now, we have looked at techniques for distributing the data among the workers in a parallel pool. Often, we need to gather from all the workers, for example, for plotting. MATLAB PCT provides a function gather for this purpose.

The output of gather varies depending upon where it is called in the code.

• Inside the spmd block, gather gathers all the elements of an array from all the workers and dumps the entire collection to all the workers. This is equivalent to MPI_Allgather in the MPI. This is the default behaviour if no second argument is specified.
• Inside the spmd block, gather gathers all the elements of an array from all the workers and dumps the entire collection to a particular worker, if a second argument is specified. B=gather(A,labnum) gathers all the elements of A from all the workers onto the worker labnum.
• Outside the spmd block, gather gathers all the elements to the client workspace.

gather with codistributed arrays:

n = 20;
spmd
    A = codistributed(magic(n));  % a codistributed array on all workers
    B = gather(A);                % gathers all elements to all workers
    C = gather(A,2);              % gathers all elements to worker 2
end
D = gather(A);                    % gathers all elements to the client

gather with distributed arrays.

n = 20;
A = distributed(magic(n));  % a distributed array on all workers
B = gather(A);              % returns the array to the client

Key Points

• spmd offers a more flexible environment for parallel programming when compared with parfor.

• All the workers in the pool execute the statements inside the spmd block.

• Understanding of distributed arrays is essential for successfully developing parallel programs in MATLAB.
